    Custom Waterproof Film Conductive Silicone Rubber Keyboard

    Ask Lasest Price
    Brand Name : OEM
    Model Number : OEM
    Certification : SGS,ROHS,ISO
    Price : USD, Negotiation
    Payment Terms : T/T, L/C, Western Union,Paypal
    Supply Ability : 1000,000pcs/month
    Delivery Time : 7~15 work days
    MOQ : 5,000PCS
    • Product Details
    • Company Profile

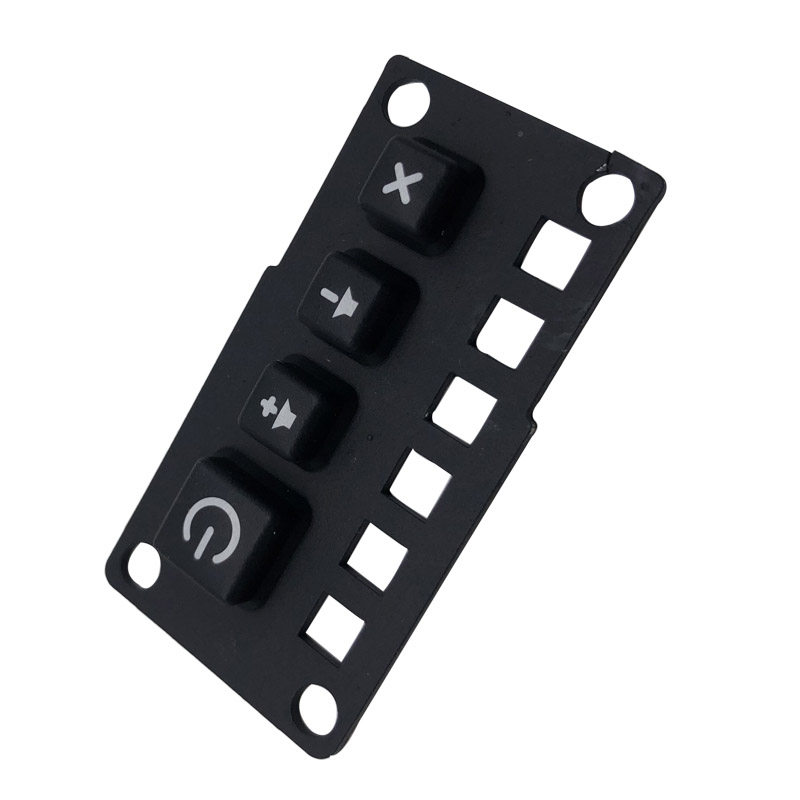

    Custom Waterproof Film Conductive Silicone Rubber Keyboard

    Custom Waterproof Film Conductive Silicone Rubber Keyboard Keys


    Product Introduction


    Silicone rubber buttons & keypads are widely used in industrial electrical, electronic communications, POS terminals, security home and other fields, Clear printing, high quality is our commitment to customers, welcome to contact us at any time and inquire.

    The sample delivery time is 2-7 days, and the product will be delivered within 15 days. The molding production time is calculated separately, and the monthly production capacity is more than 500,000 pieces.


    Maximum Circuit Rating:
    35V DC, 100mA, 1W
    Contact Resistance:
    10Ω-500Ω
    Insulation Resistance:
    100MΩ at 100V DC
    Dielectric Withstand:
    250V Rms(50-60Hz 1min)
    Contact Bounce:
    5ms or less
    Mechanical :
    Actuation Force:
    Flat type 60g-330g(2-10OZ)
    Tactiel type:150g-400g(6-14OZ)
    Switch Stroke:
    Flat type 0.1-0.5mm
    Tactiel type:0.6-1.5mm
    Life Expectancy:
    Flat type five million closures or more
    Tactile type one million closures or more
    Environmental:
    Operating Temperature:
    -40℃~ +80℃
    Storage Temperature:
    -40℃~ +85℃
    Humidity:
    40℃,90%~95%,for 240 hours

    Our services
    1. Our customers customize the production of all kinds of silicone rubber products.
    2. Accept OEM/ODM orders.
    3. Processed all kinds of silicone rubber pressing and injection molds for customers.
    4. We can customize exclusive packaging for customers according to their design requirements.
    5. Accept the services of designated freight forwarders from customers, and recommend high-quality freight forwarders to meet customers' transportation requirements.
    6. Assist in providing all-round transportation services such as sea transportation, air transportation and logistics.
    7. We can negotiate various payment methods, such as T/T, L/C, Western Union, Paypal, etc.
