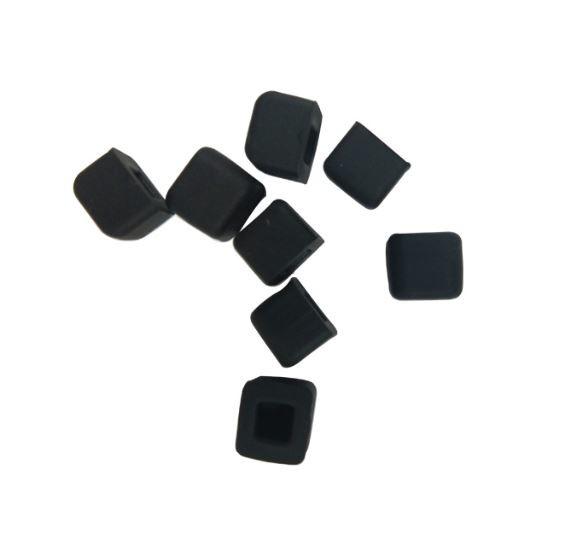

    EMI Gasket Shielding Moulding Conductive Silicone Rubber

    Ask Lasest Price
    Brand Name : OEM
    Model Number : OEM
    Certification : SGS,ROHS,ISO
    Price : USD,Negotiation
    Payment Terms : T/T, L/C, Western Union,Paypal
    Supply Ability : 500,000pcs/month
    Delivery Time : 7~15 work days
    • Product Details
    • Company Profile

    EMI Gasket Shielding Moulding Conductive Silicone Rubber

    Conductive Rubber,Conductive cap,Custom high-quality EMI gasket shielding electromagnetic conductive silicone rubber

    Product Introduction


    Conductive Rubber, is one kinds of elastomer, which conductive particles are well-dispersed in the elastomeric silicone rubber. Electrically conductive materials, such as carbon & graphite, silver, graphite nickel plating, siliver-plated aluminum, glass silvering. etc. Conductive Rubber & Electrically Conductive Silicone, as one kinds of EMI & RFI shielding materials, which used to reduce or eliminate the electromagnetic interference and radio frequency interference noise, widely used in electronics, medical device, aerospace, military and industrial fields.


    Conductive Rubber Main Types & Kinds:


    CONSIL-NC (graphite nickel plating filled in silicone rubber)
    CONSIL-V (silver filling silicone rubber extrusion padding)
    CONSIL-A silicone rubber (aluminum silver)
    CONSIL-N (nickel plated silver filled in silicone rubber)
    CONSIL-C silicone rubber (copper plating silver)

    SC-CONSIL (graphite filled in silicone rubber)

    CONSIL-R silicone rubber (fine silver)
    CONSIL-II (silver filled in silicone rubber molded gasket)

    Conductive Rubber Physical Properties & Material Date Sheet


    Material Specification

    ItemUnitStandardZH-3140ZH-3150ZH-3160ZH-3170ZH-3175ZH-3180
    Application//ElectricalElectricalElectricalElectricalElectricalElectrical
    Appearance//BlackBlackBlackBlackBlackBlack
    Densityg/cm²GB/T533-20081.14±0.031.16±0.031.18±0.031.20±0.031.22±0.031.24±0.03
    HardnessShore AGB/T531.1-200840±350±360±370±375±380±3
    Tensile Strength≥MPaGB/T528-19983.04.05.54.03.52.8
    Elongation≥%GB/T528-1998360330300270210180
    Tear Strength≥KN/mGB/T529-19987.08.07.57.06.05.0
    Linear%GJB5873-20063.4~3.83.2~3.63.1~3.52.9~3.32.8~3.22.7~3.3
    Resistence≥%GB/T1681-2009444040383531
    Surface Resistivity≤ΩGB/T1410-20064002201601008580
    Plasticity/GB/T12828-2006105±20130±20155±20170±20200±30230±30

    Super Conductive & Superconductive Silicone Rubber


    ColourTan
    Density3.5g/cm²
    Hardness Range30~80 Shore A (Standard 65 Shore A)
    Volume Resistance<0.005Ω.cm
    Tear Strength2.0MPa
    Elongation at break100%
    Compression Set (-72 hours at 100℃)<25%
    Temperature Resistance-55℃~160℃

    Product Pictures


    Conductive Rubber Forming:

    Compression Molded

    Die Cutting

    Extruding Molded

    LSR Injection Molding


    Conductive Rubber Main Molded Components:

    Conductive Rubber Sheets

    Conductive Washer & Pad

    Conductive Rubber Tubing

    Backed Adhesive Conductive Washer & Sealing Gasket

    Conductive Rubber Keyboard & Buttons


    Conductive Rubber Volume Resistance

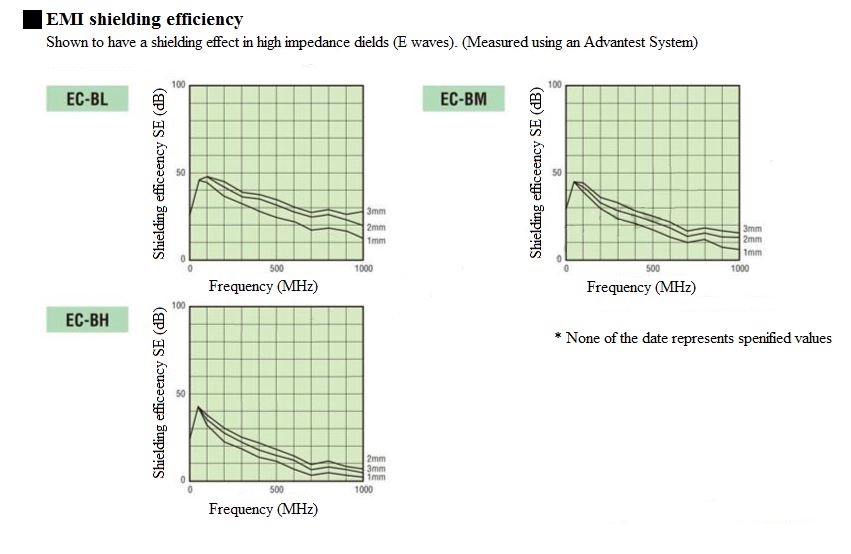

    Conductive rubber EMI shielding Efficiency



    Conductive rubber Heat Recesistance


    We are a professional manufacturer of silicone rubber products, has more than 15 years of experience in silicone rubber processing, the factory passed the ISO9001 international quality system certification, has the precision mold design and manufacturing technology, can be customized for you all kinds of rubber conductive cap, silicone conductive tip, silicone rubber keypads, seal rings, gaskets and other silicone products, please feel free to contact us for inquiry.
