    Arabic Numeric Matrix Silicone Rubber Keyboard 3x4 Style

    Ask Lasest Price
    Brand Name : OEM
    Model Number : Customized
    Certification : SGS,RoHs, ISO9001
    Price : USD0.45~2.5
    Payment Terms : T/T, L/C, Western Union,Paypal
    Supply Ability : 1,000,000 pcs/month
    Delivery Time : within 7~15 days
    MOQ : 2,000PCS
    • Product Details
    • Company Profile

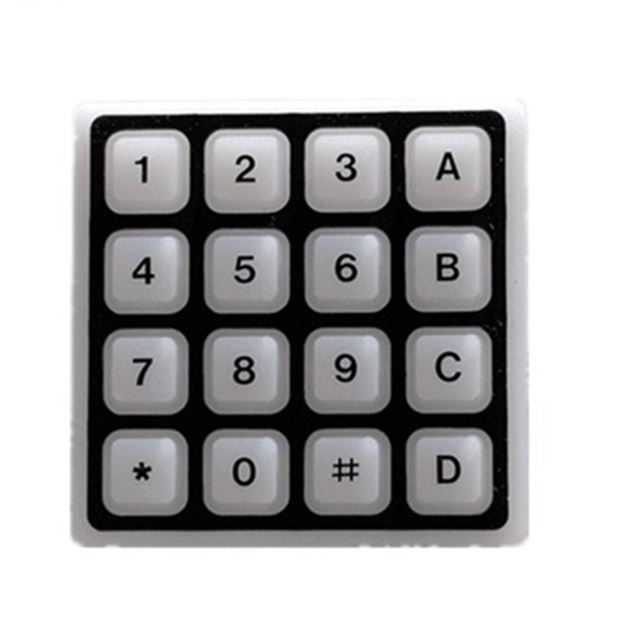

    Arabic Numeric Matrix Silicone Rubber Keyboard 3x4 Style

    OEM Arabic numeral rubber keyboard matrix silicone rubber keyboard 3x4 style
    Product Introduction

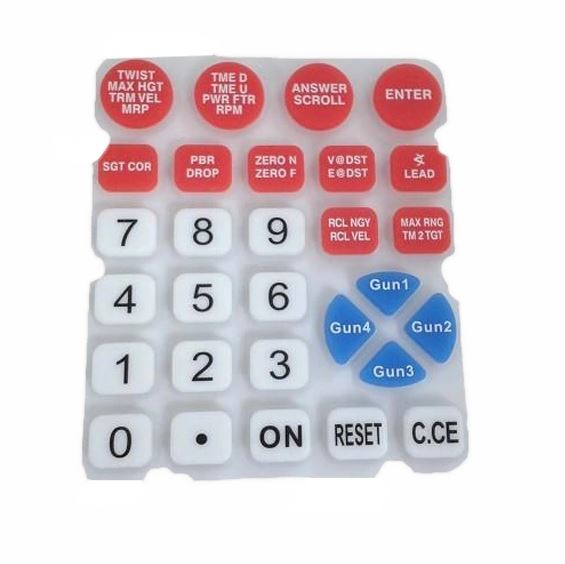

    Silicone rubber buttons & keypads are widely used in industrial electrical, electronic communications, POS terminals, security home and other fields, Clear printing, high quality is our commitment to customers, welcome to contact us at any time and inquire.

    The sample delivery time is 2-7 days, and the product will be delivered within 15 days. The molding production time is calculated separately, and the monthly production capacity is more than 500,000 pieces.


    Product Specifications

    Materialsilicone rubber
    Size/shapeaccording to the 3D or 2D technical drawing or sample
    Logoembossed and debossed printing, colorfull printing, customize
    Coloras the pantone color
    Actural force(N)1~4
    Contact resistance<200Ω
    Stroke (mm)1.0~3.0
    Hardness20A~70A
    Usage temperature-20℃~160℃
    Secondary processesPrinting, coating,laser etching,assembly
    Characteristics

    oil-proof, acid-base, anti-wear, eco-friendly, abrasion resistance,

    soft flexible

    Minimal customer input2D-drawing (dxf,pdf);3D-database(igb,step);artwork (eps;dxf)
    ApplicationRemote controller,automobile,instrumentation,electronical equipment, meidical
    CertificateROHS, SGS, ISO9001
    Lead time of mouldabout 10 days
    Lead time of products7~15 work days after confirmed the sample.

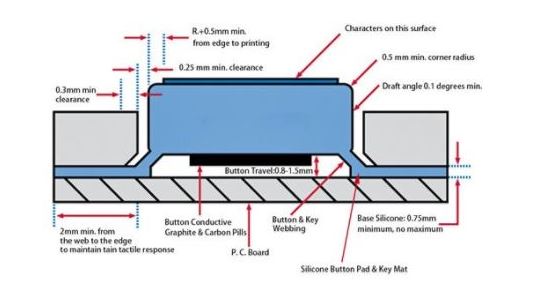

    The design and production of silicone keyboard mold, not only from the driving force, key stroke, conductive mode and other silicone rubber keyboard structure to consider, but also to consider the choice of keyboard materials, surface paint, hardness differences.

    Some customers pay more attention to the driving force of the silicone rubber keyboard than the overall performance of the keyboard.For example, silicone rubber keyboard mesh fabric uniformity, the impact of spraying, key coverage effect, keyboard and equipment integration, a good keyboard design, always want to consider more comprehensive.


    Silicone Rubber Keypads Type:


    1. Screen printing Keypad



    The production of silk-screen keyboard



    Silk Screen Printing Keypad Protection Method


    In order to prevent the colorful symbols & Icons on the surface of silk screen printing keypad from wearing off, most printed silicone buttons need Matte Smoothing Coating,PU Coating, Epoxy Coating,Plastic Button Covers or Metal key cap for protection.


    2. Rubber Color Spraying Keypads


    Rubber Color Spraying Keypad,also called Color Coated Silicone Keyboaerd & Button,which is one of main silicone rubber keypads surface process.Silicone Rubber Keypads or plastic button cap surface is spraying coated with colorful layers for decoration or laser cutting, some is for LED light blocking.



    If you need to add a well-designed silicone rubber keyboard to your design and product, please do not hesitate to contact us and make an inquiry, we will provide you with a full range of services.
