The sample delivery time is 2-7 days, and the product will be
delivered within 15 days. The molding production time is calculated
separately, and the monthly production capacity is more than
500,000 pieces.
Product Specifications
| Product Name | Epoxy resin drop process silicone rubber keys |
| Material | Eco-friendly harmless non-toxic non-corrosiveness silicone material |
| Accessories material | Metal Dome, 3M adhesive,Conductive Pill,Transmitting Material |
| color | As your design, Pantone Color |
| Size and shape | Customized |
| Logo | According to your design. rich colors print logo embossed or debossed logo are available. Epoxy , laser caving , spray , silkscreen , etc . |
| Payment terms | 30% as deposit and balance before shipment by T/T |
| 3D/CAD drawing | Accept Stp, X_t,Pro/e,Solidwork,UG format |
| Hardness | 30~75 shore A |
| Operation temperature | -40℃~240 ℃ |
| Tensile strength | 1,500 PSI |
| Tear strength | 88 Ibs |
| Key stroke | 0.2~0.3mm (According customer's requiements) |
| Life expectance | 500,000~2,000,000 closures |
| Package | Bulking packing ( suitable units in a opp bag , then put in a
carton ) |
| Delivery time | 7-15 work days after confirmed the sample |
| Shipping | via air or sea |
| Certification | SGS , ROHS , ISO9001,ISO14001 etc . |
| Usage | Automotive,Consumer Electronics,Medical Equipments,Remote
controltoy,Test instrument,Industry |
Note: The design and production of silicone keyboard mold, not only from
the driving force, key stroke, conductive mode and other silicone
rubber keyboard structure to consider, but also to consider the
choice of keyboard materials, surface paint, hardness differences.
Some customers pay more attention to the driving force of the
silicone rubber keyboard than the overall performance of the
keyboard.For example, silicone rubber keyboard mesh fabric
uniformity, the impact of spraying, key coverage effect, keyboard
and equipment integration, a good keyboard design, always want to
consider more comprehensive.

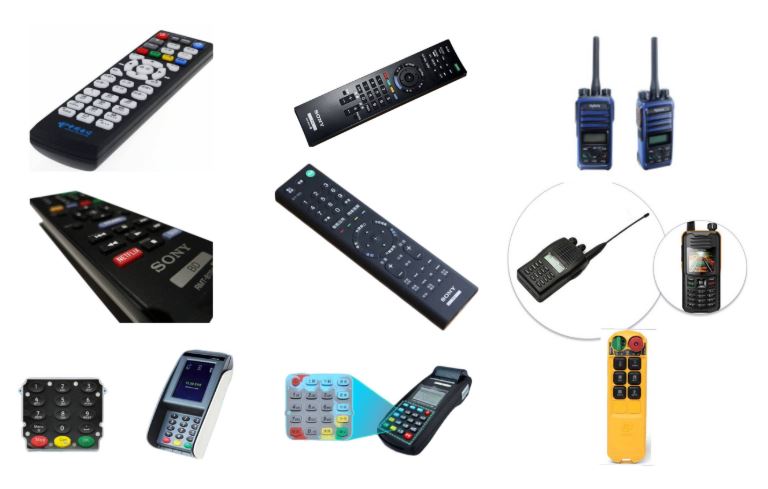

Application fields of silicone rubber keys
Silicone rubber keys are widely used in almost all industries, such
as walkie-talkie communication equipment, medical equipment, home
appliances remote control, game consoles, POS cashier system, bank
password, office equipment, automobiles, ships, aircraft, energy,
electricity and so on.We can customize silicone rubber keys according to your design
scheme, including color, shape and corresponding technical
parameters.Feel free to contact us for enquiries.
Silicone Rubber Keypads Type:
1. Screen printing Keypad
The production of silk-screen keyboard
Silk Screen Printing Keypad Protection Method
In order to prevent the colorful symbols & Icons on the surface of
silk screen printing keypad from wearing off, most printed silicone
buttons need Matte Smoothing Coating,PU Coating, Epoxy
Coating,Plastic Button Covers or Metal key cap for protection.
2. Rubber Color Spraying Keypads
Rubber Color Spraying Keypad,also called Color Coated Silicone
Keyboaerd & Button,which is one of main silicone rubber keypads
surface process.Silicone Rubber Keypads or plastic button cap
surface is spraying coated with colorful layers for decoration or
laser cutting, some is for LED light blocking.
